Gear Cutout Template for Laser & CNC Projects

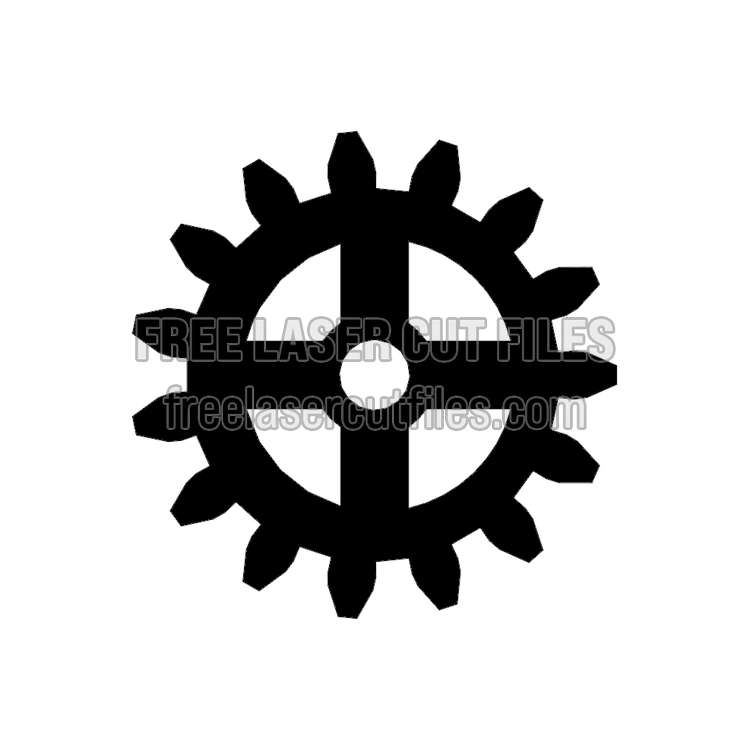

This is a simple gear template intended as a clean vector outline for laser or CNC cutting. It produces a single gear cutout that can be adapted for crafting and educational projects.

The design focuses on a clear gear silhouette rather than functional gearing; use it for decorative accents, stencils, clock-face motifs, or visual demonstrations of gear geometry.

Apply the pattern as a cutting or engraving guide with your machine, or print it as a paper template. The vector can be scaled to suit your project and works with common cuttable sheet materials.

The download includes a DXF vector file compatible with most CNC and laser workflows. This is a digital design only — no physical product is delivered, and it's intended for workshop use.

Ideal for hobby makers, teachers, and small shops experimenting with shapes and prototypes. Grab the free DXF gear template to test cuts, create decorations, or teach basic mechanical forms.
